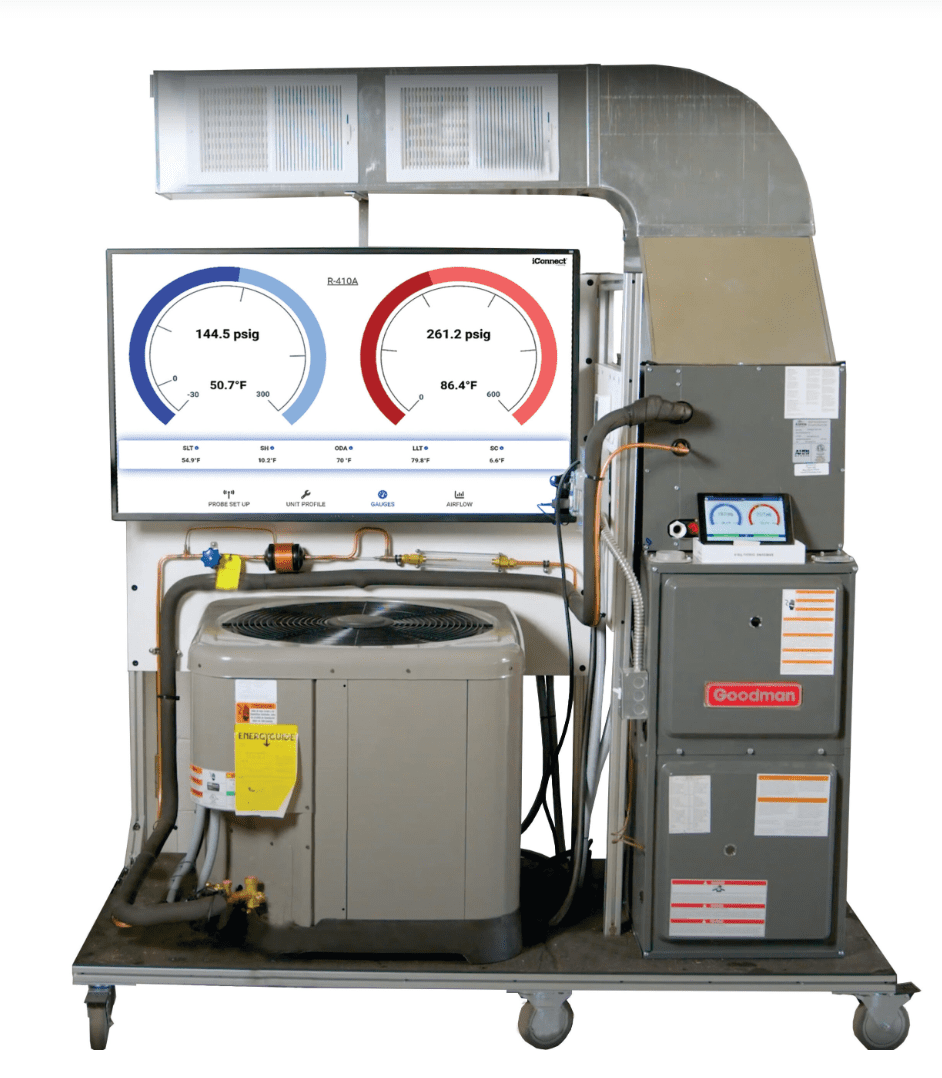

Deluxe Air Conditioning & Gas Furnace Training Unit (TU-206CGF)
Looking to provide your HVAC/R students with real-world, hands-on training? The TU-206CGF Deluxe Air Conditioning & Gas Furnace Trainer from iConnect Training equips future technicians with practical experience in troubleshooting wiring, piping, and control systems. This comprehensive training unit delivers realistic system operation and diagnostics, giving students a clear view into the inner workings of a residential air conditioning and gas furnace setup—all within the safety and convenience of the classroom.
Features
- Features fault simulation with: 2 refrigerant-related faults and 4 electrical faults for hands-on troubleshooting practice
- Offers real-world application scenarios and diagnostic exercises
- Refrigeration cycle is fully visible, with components exposed for observation
- Sight glass connected to high-pressure tubing allows students to see the refrigerant’s physical state during operation
- Enables measurement of pressure, temperature, and electrical values for performance analysis
- Open design with clearly visible wiring and piping for instructional clarity
- Supports R‑410A refrigerant pump-down for safe servicing practice
- Equipped with a thermostatic expansion valve (TXV) as the metering device
- Includes two sets of pre-connected high and low-pressure gauges (gas and liquid lines)
- Provides all necessary line voltage and low-voltage wiring
- Integrated low-voltage transformer with dedicated wiring for safe student use
- Comes with a comprehensive lab manual and the “Refrigeration and Air Conditioning Technology” textbook
- Optional equipment add-on package includes all essential professional tools for performing complete service checks
