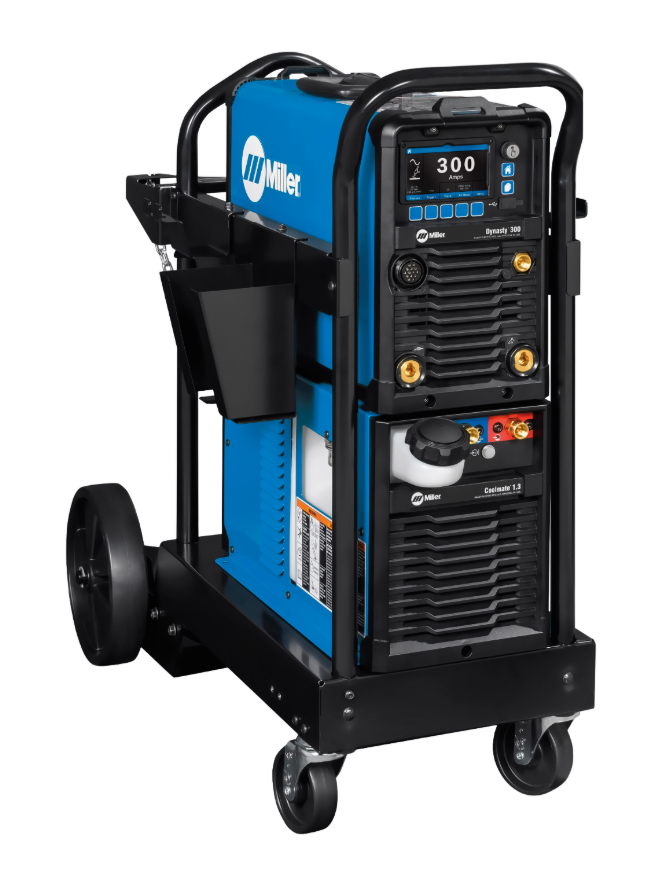

Dynasty® 300 208-600 V, TIGRunner

The Dynasty 300 Series offers a powerful blend of performance and portability, capable of welding materials up to 3/8 inch thick. These AC/DC TIG/Stick power sources feature an energy-efficient inverter design along with Auto-Line™ technology for added convenience.



What’s Included

  • Dynasty 300
  • Coolmate™ 1.3
  • Small Runner Cart
  • Adjustable Shoulder Strap
  • 8 ft (2.4 m) primary cord

Features

  • Intuitive Interface LCD Display – Easily set up the machine and select parameters with helpful on-screen guidance and dynamic visuals.
  • Program Memory – Enables simple naming, saving, and retrieving of preferred weld settings.
  • Pro-Set Features – Pro-Set removes the guesswork in setting weld parameters. Just select the feature and adjust until Pro-Set appears on the display. Available for Balance, Frequency, Pulse, and DIG parameters for speed, convenience, and confidence.
  • Locks and Limits – Controls weld parameter ranges to minimize deviations from the welding procedure specifications (WPS).
  • QuietPulse – QuietPulse adjusts the waveshape for DC pulse welding, creating a smoother transition between background and peak amperage to minimize audible noise.
  • USB Port – Allows easy software updates, settings backups, and transfer of saved weld programs between units.
  • Auto-Line Technology – This inverter power supply offers portability and reliability, supporting single-phase input voltage (208–600 V) without manual linking, making it convenient for any job. It’s the ideal solution for unstable or poor-quality power.
  • Stick Features – Tailored arc control (DIG) adjusts arc characteristics for different electrodes, like smooth 7018 or penetrating 6010. Hot Start™ ensures reliable arc starts without sticking.
  • AC Frequency Control – Adjust the arc cone width and improve directional control with settings between 50-150 Hertz.
