Finger Brake

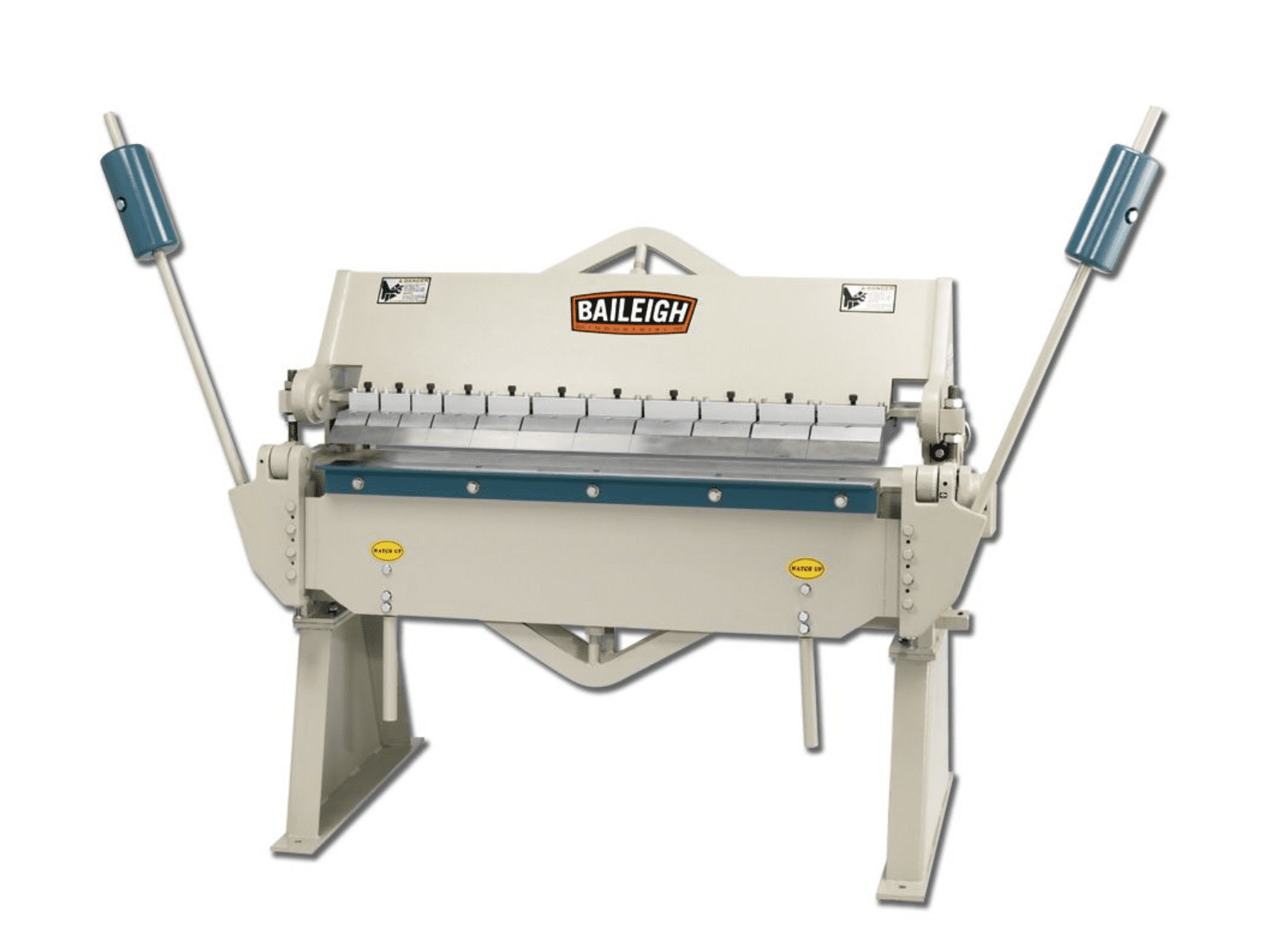

Built for durability and performance, the BB-4812 is one of the most powerful manual finger brakes in its class. Constructed from thick steel plate, this rugged machine weighs just under 2,000 lbs, ensuring superior stability and long-term accuracy for demanding bending applications.

Recommended For:

Metal fabrication shops of all sizes seeking a compact yet heavy-duty manual brake capable of handling a variety of bending tasks with precision and reliability.

Features

  • 12-Gauge Mild Steel Capacity – Bends material up to 48” wide with ease
  • 135° Maximum Bend Angle – Ideal for a wide range of fabrication needs
  • Compact Footprint – Perfect for shops with limited floor space
  • Includes 11 Hardened, Polished 3-Piece Fingers: (3) at 3”, (2) at 4”, (5) at 5”, and (1) at 6” and enables numerous box and pan configurations
  • Up to 6” Box Depth – One of the deepest in its class, thanks to the 3-piece finger design
  • Dual Handwheels – Easily adjust the gap for different material thicknesses
  • Standard Stop Rod System – Ensures repeatable bends for consistent production
  • Heavy Counterweights – Reduce operator fatigue during frequent or long-duration use
  • Massive Torsion Support System – Prevents beam twisting and ensures structural rigidity at full capacity
  • Electro-Welded Steel Frame – Reinforced with adjustable steel trusses for precision and durability
