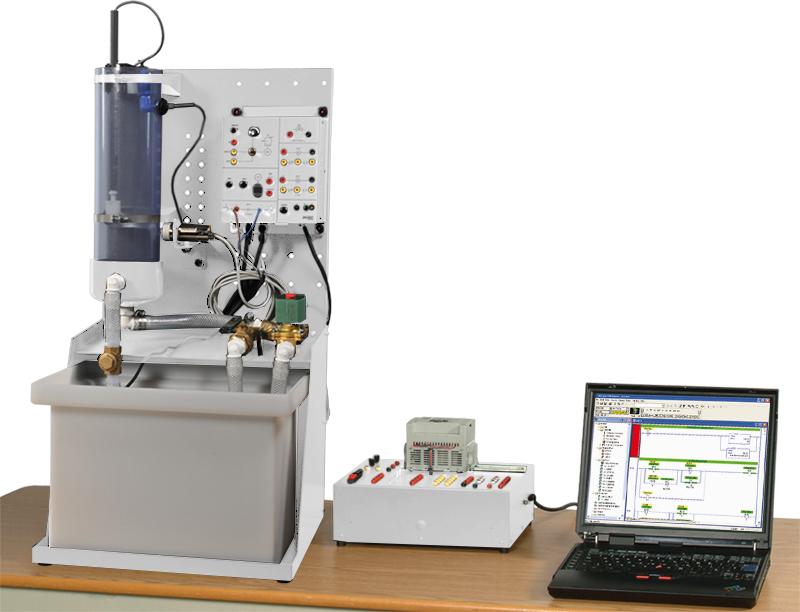

Level-Process Training System 8075-6
The Level-Process Training System is a hands-on instructional platform designed to teach the principles of liquid level control in industrial environments. Students gain practical experience using a programmable logic controller (PLC), control relays, float switches, and a water pump to regulate fluid levels within a tank. Through this system, learners explore real-world automation concepts such as on/off control, sensor feedback, and system integration—all essential for understanding modern fluid handling and process control applications.
Features
- Variable-speed submersible pump
- Transparent level process column
- Electronic interface for level control processes
- Float-based level detection switch
- Capacitive sensor for level measurement
- Magnetic level switch for non-contact sensing
- Electrically actuated solenoid valve
- Manually operated control valve
- Optional analog sensor for continuous level monitoring
- Self-regulating system supports diverse PLC-based control strategies
- Enables experimentation with batch control and PID control (based on PLC capabilities)
- Includes detailed job sheets for hands-on learning
