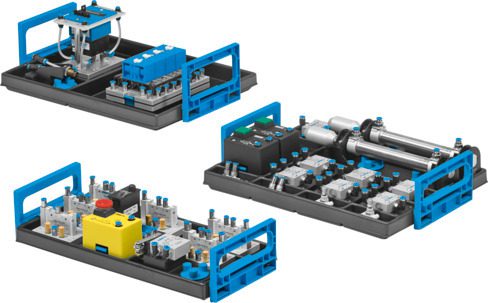

Pneumatics Advanced Level – Equipment Set TP 102

The Pneumatics, Advanced Level (TP 102) equipment set focuses on advanced training in pneumatic control technology. Building on the foundational knowledge from the Basic Level, this set enables learners to construct complex combinational circuits, incorporating links between input and output signals as well as controls using clock chain modules. The training media include challenging, project-based exercises designed to deepen understanding. Key learning objectives include the development of extensive pneumatic control systems, the use of limit and proximity switches for end-position sensing, memory circuits and signal inversion, and the implementation of basic and advanced cycle step controllers. Learners will also gain experience with controllers that utilize pneumatic timers and preset counters.
