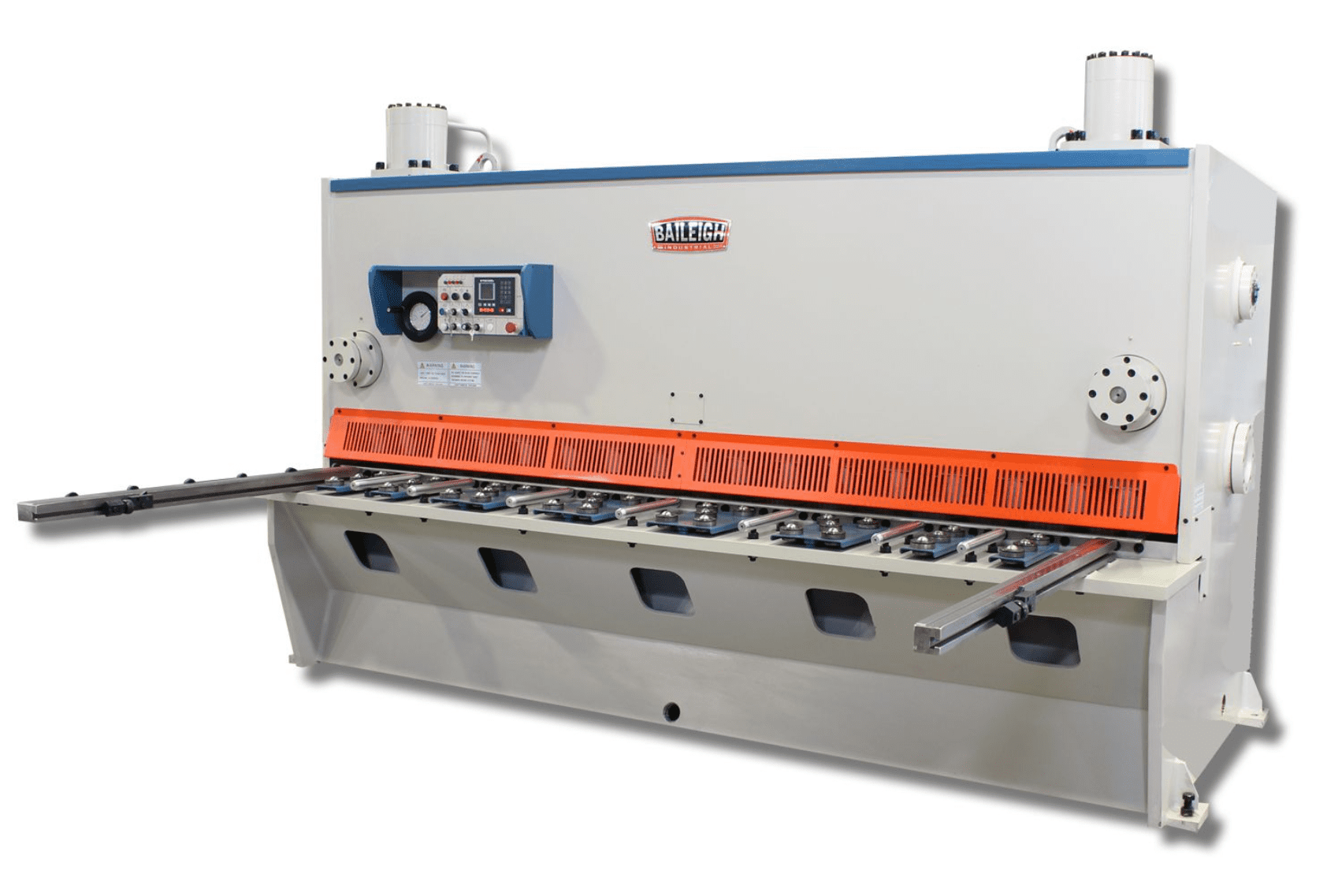

Three Phase Heavy Duty Hydraulic Shear

With a heavy-duty steel frame and weighing more than 23,000 lbs., this hydraulic shear is built for consistent, long-term performance. The NC controller allows for simple, precise backgauge programming. Available in both 96” and 120” models, each with a ¼” maximum cutting capacity. An optional sheet support system can also be added at the time of purchase.

Features

  • Capable of handling up to ½”-thick mild steel and delivers 9 strokes per minute.

  • Powered by a robust 20 hp motor operating on 220V, 3-phase power, with a 120” bed for cutting sheets up to 10 feet long.

  • Built with top-tier components, including Schneider electrical systems, Rexroth hydraulic parts, and high-quality NOK seals from Japan.

  • Front-access hydraulic system makes fluid maintenance easy—simply lift the access panels using the integrated handles.

  • Squaring arms keep materials aligned with the blade, while an adjustable blade gap (controlled by a handwheel) prevents crimping or distortion.

  • Front-mounted roller infeed tables assist with loading heavy materials efficiently.

  • The fully programmable backgauge offers precision to ±0.01mm and stores up to 100 programs in its internal memory.

  • Adjustable rake angle reduces burrs and hydraulic strain—just press a button and move the lever until the indicator light signals readiness.

  • A standard shadow line positioner ensures precise material alignment.

  • The solid, fully welded steel frame minimizes vibration and stress for cleaner, more consistent cuts.
