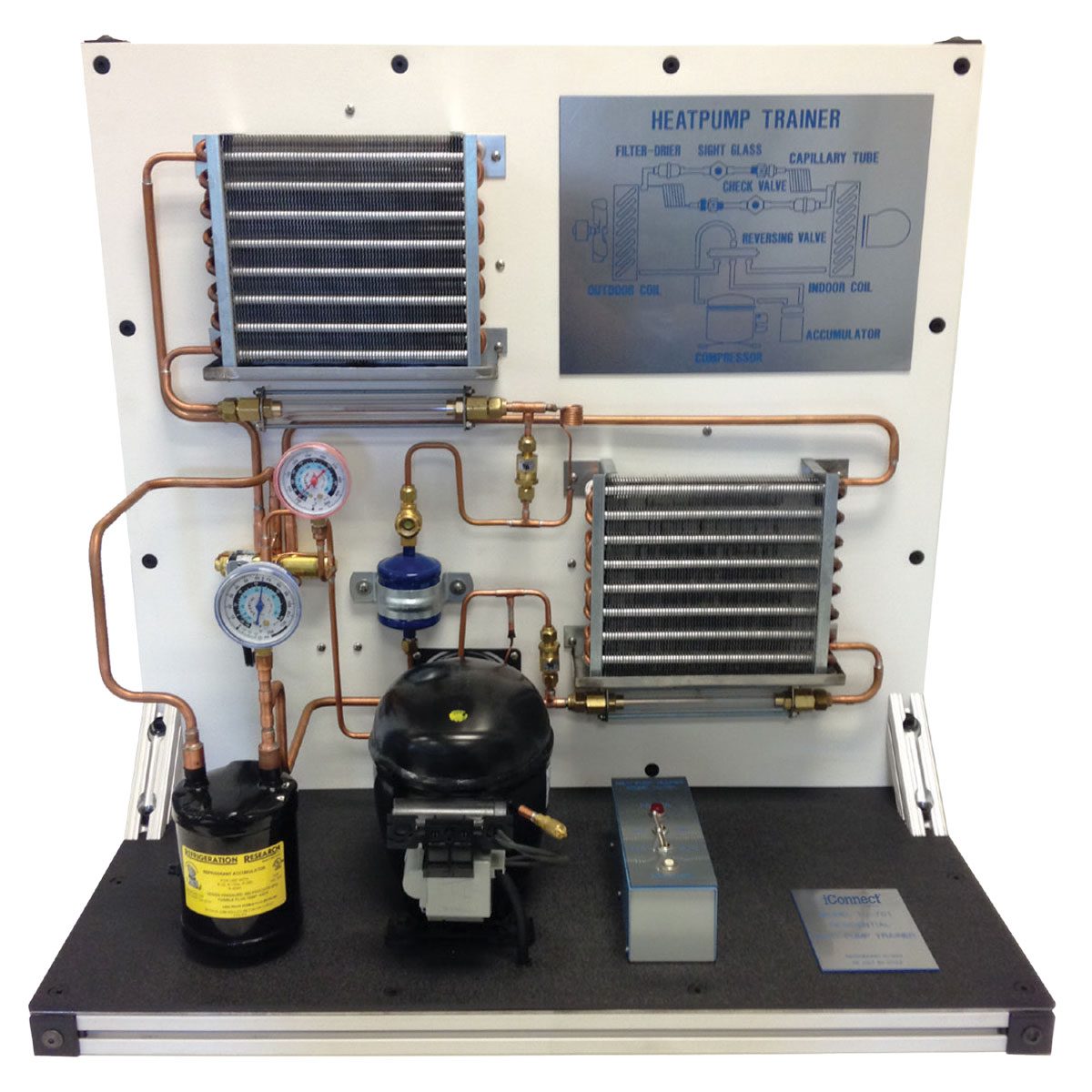

TU-701 Table Top Heat Pump Trainer

The TU-701 Table-Top Heat Pump Trainer is an ideal entry-level training unit that offers hands-on experience with the fundamentals of heat pump operation. Designed for ease of use and clear visual learning, it allows HVAC/R students to observe refrigerant movement and the function of the reversing valve, which is prominently displayed on the front of the unit. The trainer visibly demonstrates the switch between hot and cold air, making it a highly effective tool for teaching heat pump theory, wiring, piping, and basic controls.

Features

  • Pre-piped and pre-wired with all components fully visible
  • Observe the full refrigeration heat pump cycle
  • Measure pressure, temperature, and electrical values in real time
  • Explosion-proof sight glass tubes before and after metering device
  • Evaporator and condenser built with copper tube coils and aluminum fins
  • Fixed speed fans for condenser and evaporator
  • 120VAC line voltage with built-in circuit breaker
